Semi-auto PU 2 color shoe machine
Overview
Features:
1. Well configured system and ease maintenance.

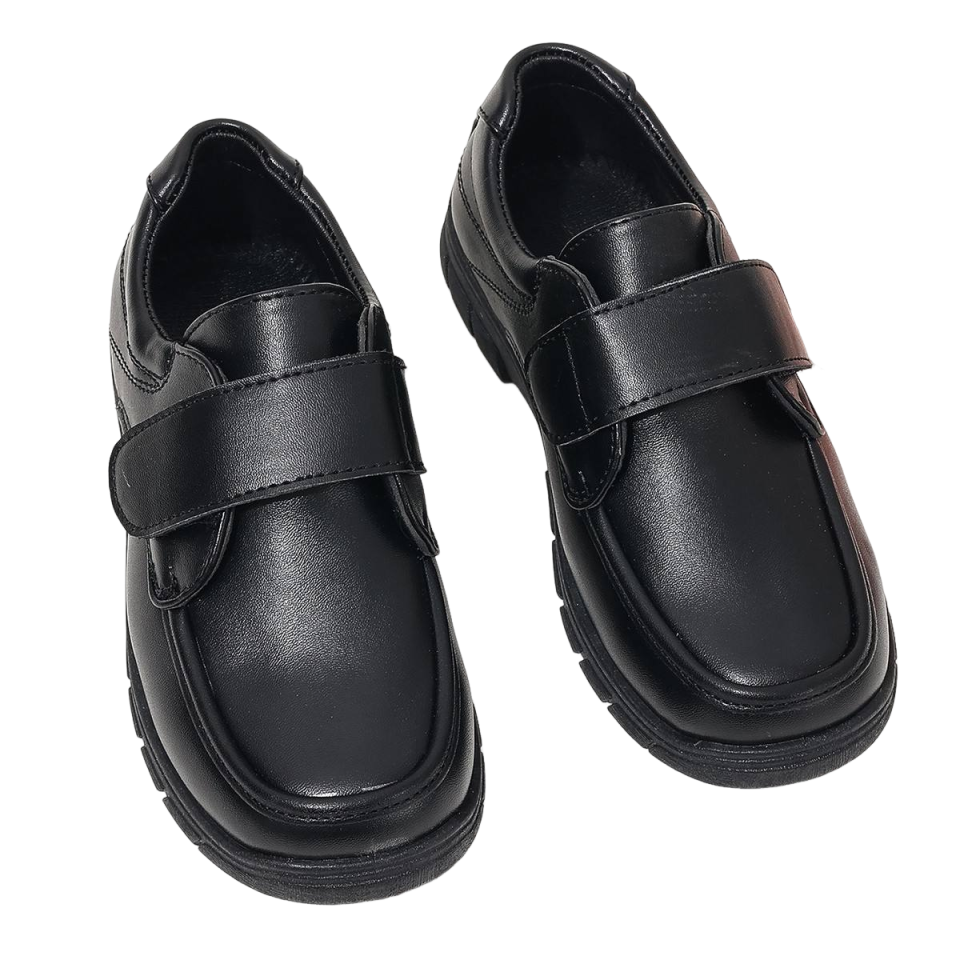

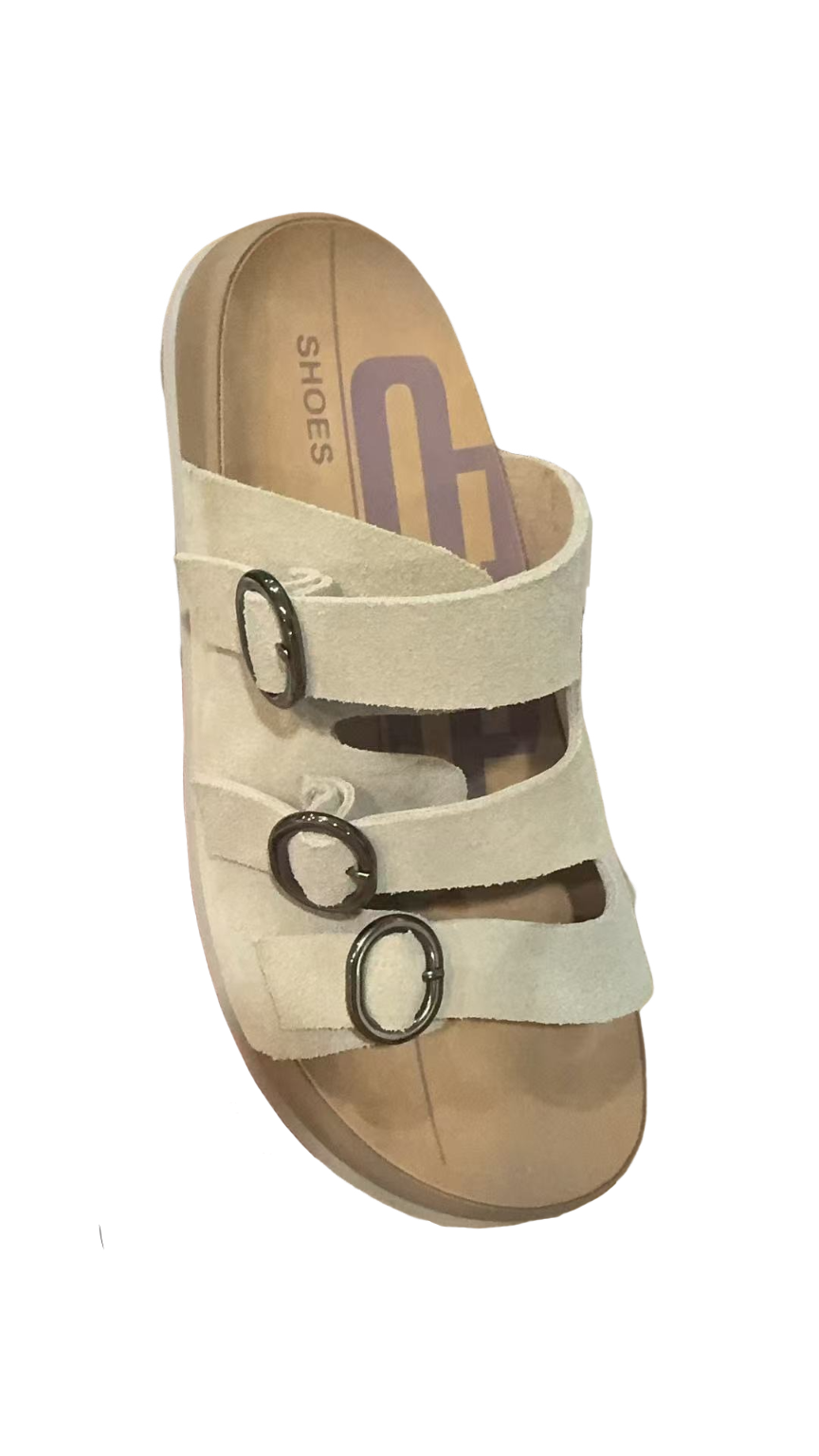

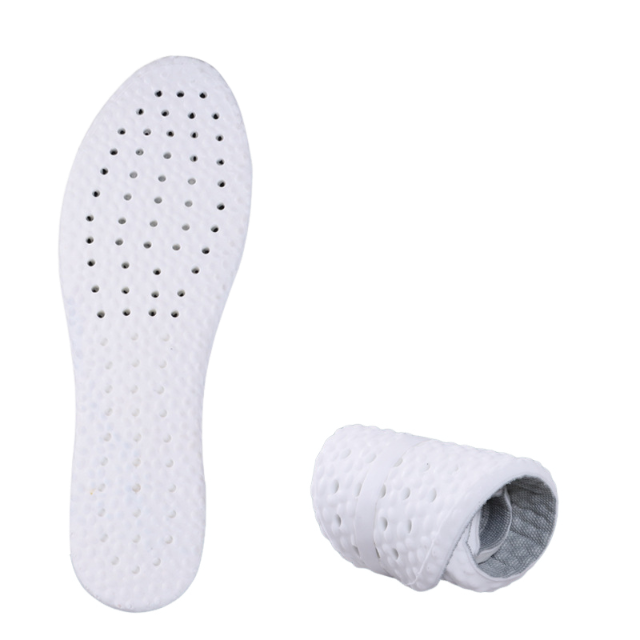

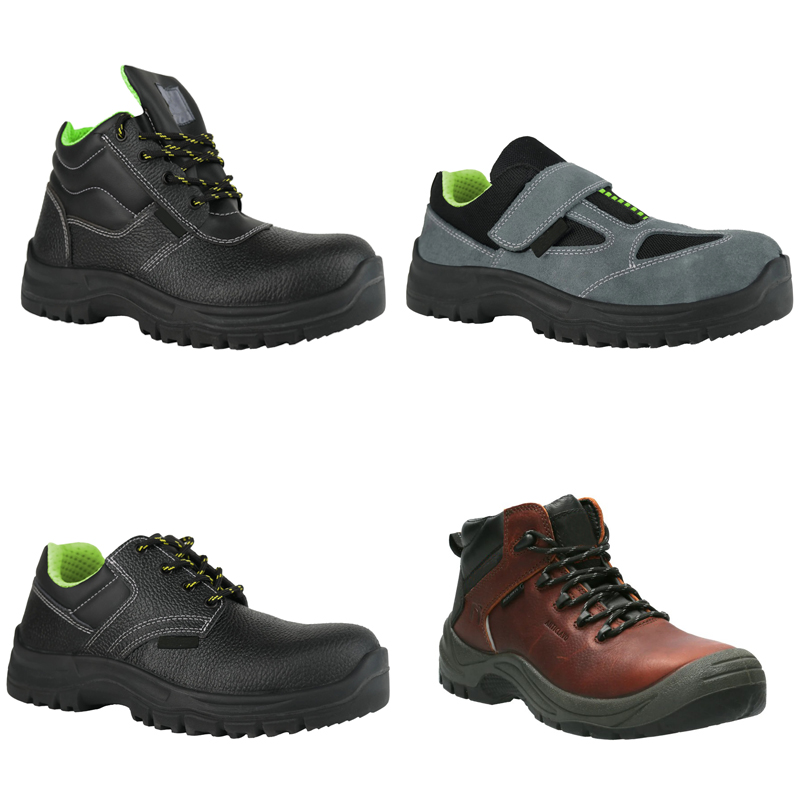

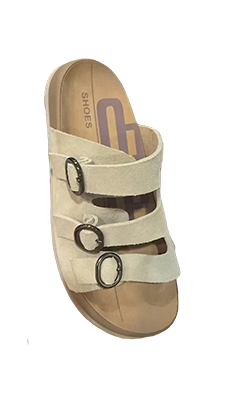

2. Used for making safety shoe, leisure shoe, casual shoe, sandal,insole, etc in double density.
3. Suitable for direct soling injection of single PU or colorful PU.
4. Each injection unit is equipped with two colors with accurate measurement of painting.
5. Automatic cleaning
6. Low noise and low energy consumption
7. Stable rotation and accurate positioning.
8 High mold clamping force
9. Independent PLC control for each station with multi-function
10 .any colors can be made.
Our product advantages：
uesd for shoes
Simple operation
bulk supply
factory price
soon delivery
customer design can be done
high quality and reliability
auto/by hand
convenient maintenance
Parts imported:
Electric control:Chnt china
Switch: France:Schnnider
Plc: Siemens
Touch screen: Siemens
Motor: Japan
Control system:
1.With the state of the art computer controlled system to gain the machinery more efficiency and reliability.
2. Self-diagnosis, alarming and monitoring functions and multi-language alternatives.
3. Preset technical parameters.
4. Reserve electrical interface for mechanical arm
5. PID closed-loop and self-regulated injection program
6. Automatic PID temperature control
7. Emergent halt protection device.
Characteristics:
1.Have 2 A tank and 1 B tank,can make different color and different density foaming shoe sole by mixing with A material and B material.
2. Under different proportion of A and B raw material, can get different properties polyurethane sole material.The mix head with 3 needles which can work independently.
3. Heating system with oil circulation, make heating more fast and more efficient in power saving.
4. Self-developed PLC, with function of setting time, real-time monitoring and so on.
5. The speed of metering pump use frequency conversion control, with advantages of energy saving and keep the rotational speed when voltage instability.
6. The speed of mix head can reach 9000r/min, it can obtain the most homogeneous material.
Technical Parameter:
| 1 | Model | ZZ-801 |
| 2 | Tank quantity | 3 |
| 3 | Tank capacity | 250L |
| 4 | Pump quantity | 3 |
| 5 | Speed of pump(r/min) | 0---280 |
| 6 | Precision (%) | ±0.5 |
| 7 | Max rotating Speed of injection screw | 4500/8600-10000 (Choice by yourself) |
| 8 | Clean the head | Automatic/By hand |
| 9 | Voltage | 380V,50HZ, or 415v ,60hz |
| 10 | power | 18(kw) |
| 11 | Clean quantity | 4500(r/min)>25,9000(r/min)>160 |
| 12 | Product characteristics | Two color two density, Produce PU shoe sole |
| 13 | Productivity(output ) | if work 8 hours can produce 3600pairs of the shoes. every four minute can produce 30prs of the shoe. |

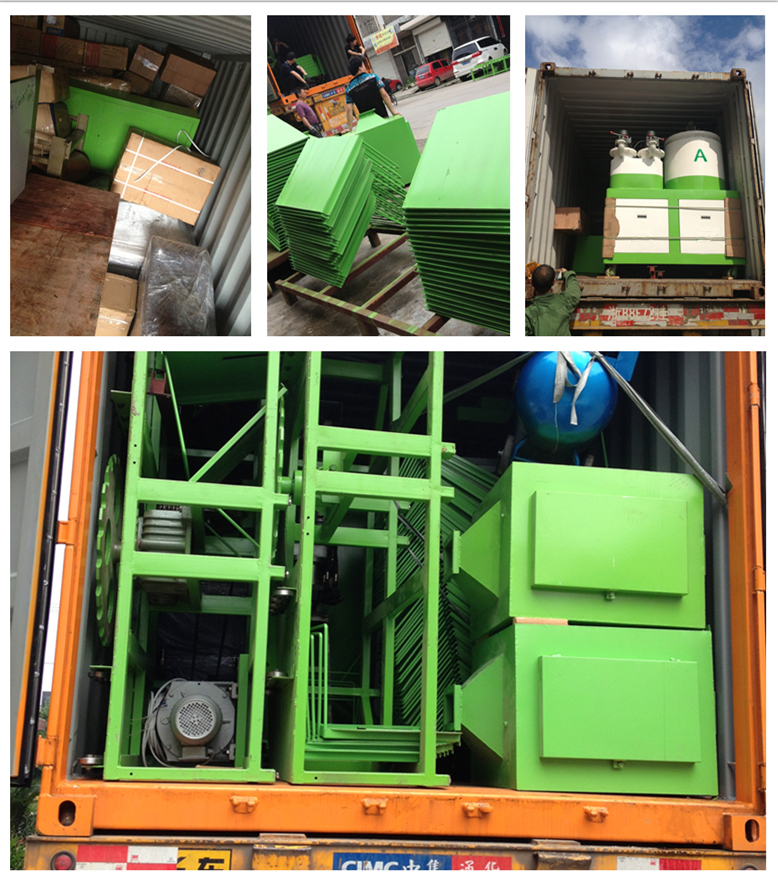

Each set include one main machine, one 60 station production line, one raw material oven

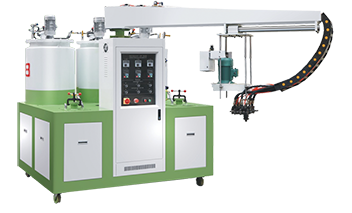

main machine
